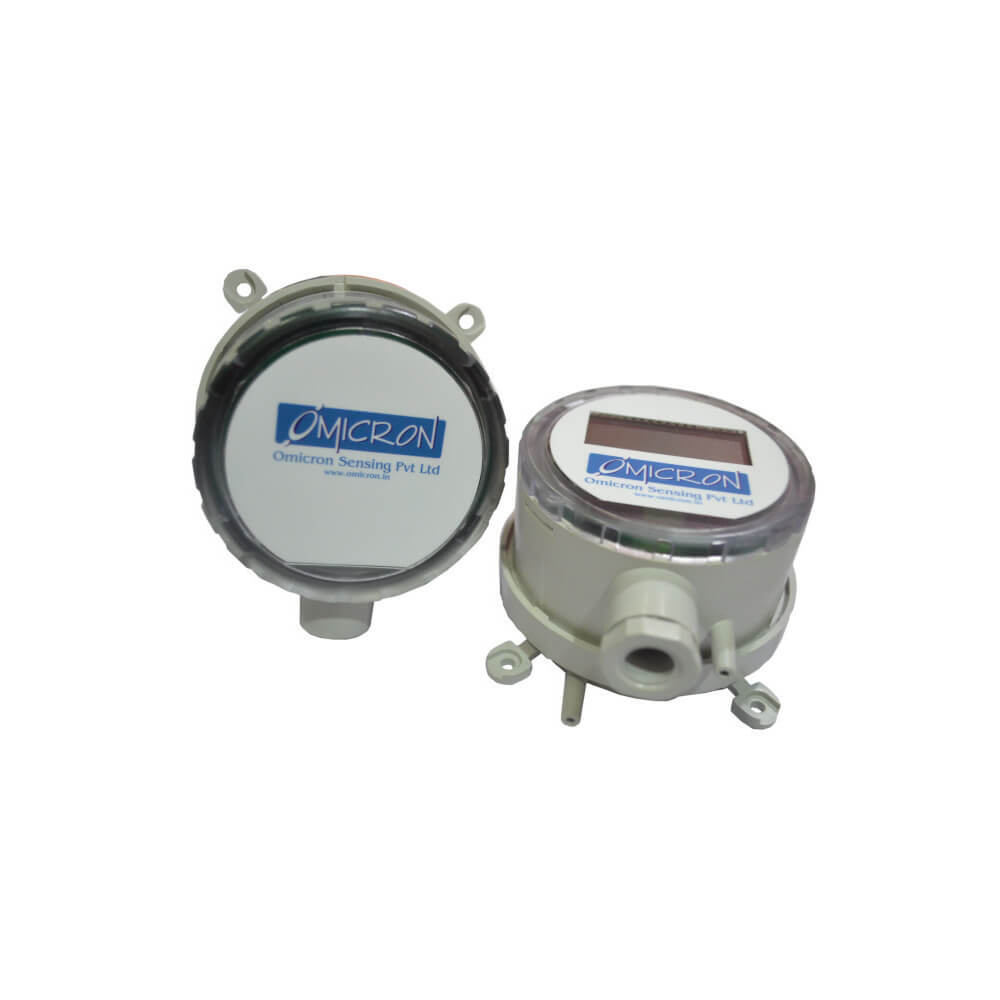

DP: Differential Pressure Transmitter

Model : DP
Range : -1000 to 2000 mmwc
Accuracy : ±1% of F.S
Media : Air / Gases
Display : Optional
Download

Description

Special Features
Minimum DP range to 25Pa and accuracy is 1%.
Range select could be easily set by button in field, do not need extra pump equipment.
Multiple applications, positive, negative or differential pressure.
Selectable double line four bit LCD Display.
High protection housing IP65.
Applications :

DP differential pressure transmitter applies new CDM technology, can precisely monitor very low range differential pressure with multiple functions. It can compensate temperature effect, is not sensitive to medium and does not have any pressure drift. So is very reliable. The pressure vibration can be filtered by the damping function. The output is steady under very low range pressure and the sensor is not sensitive to dust and moisture. It could even be installed in the outside air environment between -20~70°C. It is applicable to: clean room, isolated room, ventilation system, energy management system, leak testing, air velocity measurement, medical care and test instrument, furnace pressure test, etc.

Additional information

Medium

: Air and non-combustible gas

Accuracy

: 1%

Range

: min. 0~25Pa, max. 0~3KPa

Temperature range

: -10~50°C

Temperature drift

: 0.05% (zero and full range total)

Display

Optional

Pressure limit

: 1 psi (continuous), 10 psi (exploded)

Power supply

: 10~35VDC(2 wires);
10~36VDC or isolated 15~26VAC (3 wires)

Output signal

: 4~20mA(2 wires); 0~10(3 wires)

Response time

: field adjustable 0.5~15s

Zero and Span adjust

: digital button

Output load

: <1250 ohm (current); >1000 ohm (voltage)

Electrical consumption

: <40mA

Display (optional)

: LCD

Electrical connection

: 1/2" NPS terminal

Pressure connection

: 3/16" (5 mm) ID pipe, Max. OD 9mm

Protection rate

: IP65

Installation direction

: vertical
