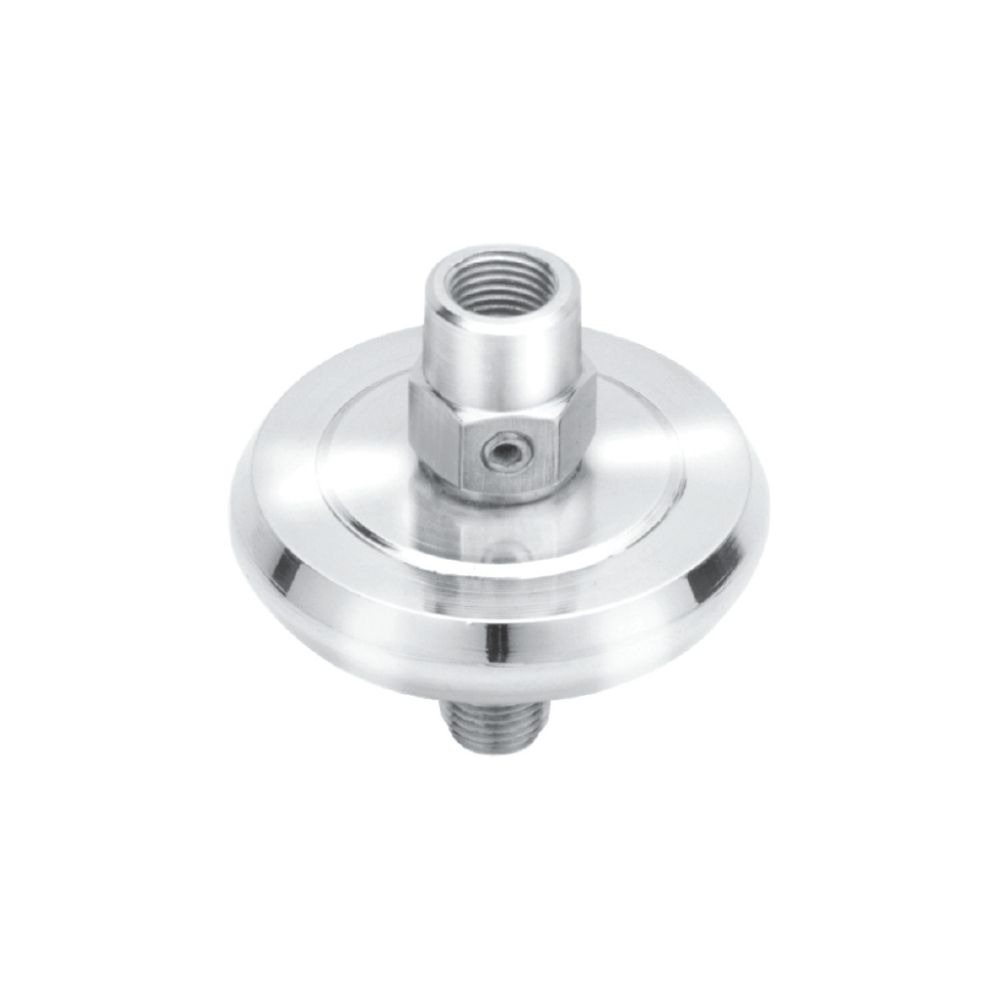

DD : Diaphragm Seal
|
||||||
Description
Applications and Features
- Diaphragm Seals are provided in the instruments like Pressure Gauges, Pressure Switches and Pressure Transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous
and sedimented nature, to avoid cloggin and solidifcation. - Compact Design
- One Piece Stainless Steel Construction
- Ideal for General Purpose Application
- Low Cost Solution
- Various Filling Fluids available
Additional information
| Pressure Range | -1 kg/cm to 210 kg/cm2 |
|---|---|
| Process temperature | – 40 °C to + 200 °C |
| Diaphragm | As per ordering code |
| Top Chamber | AISI 304 SS |
| Bottom Chamber | As per ordering code |
| Instrument Connection | As per ordering code |
| Process Connection | AISI 304 SS |
| Filling Fluid | Silicon Oil – DC 200 |
