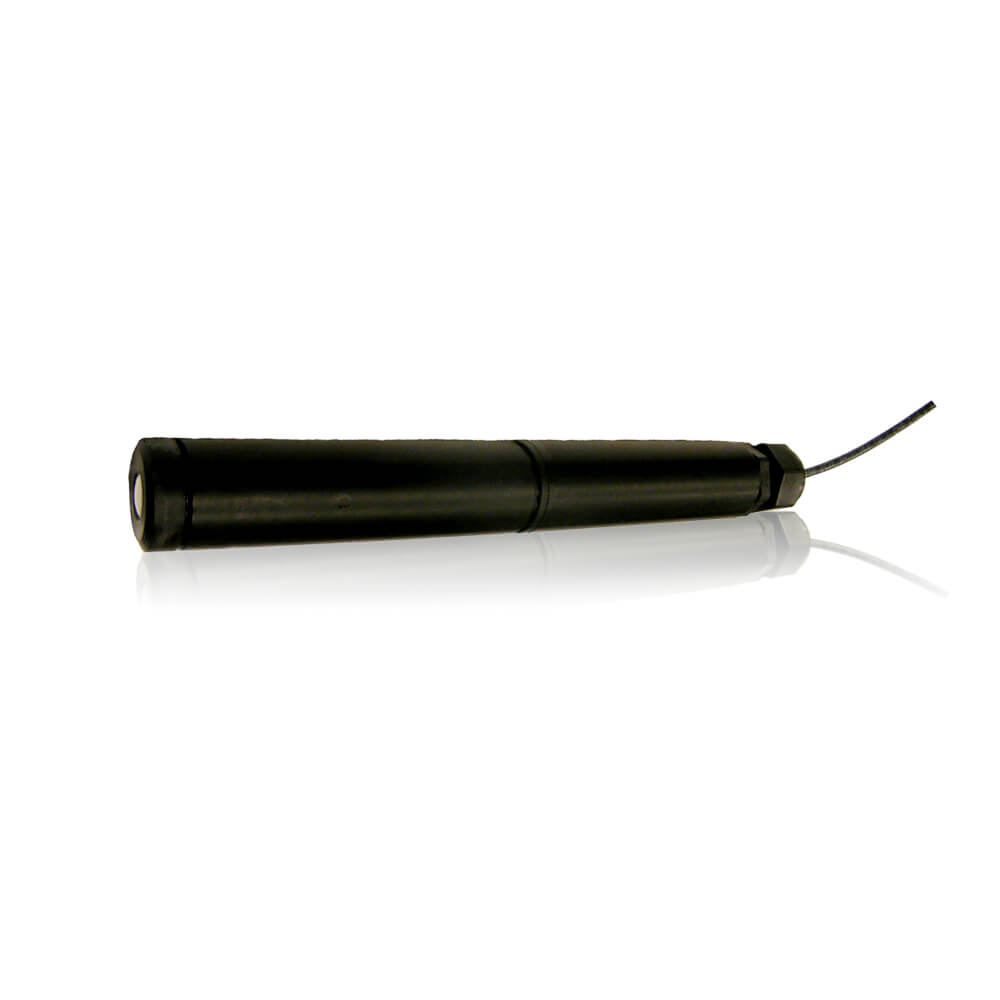

CD4: Chlorine Dioxide Sensors
|
Description
Special Features :
![]() |
4-20mA Direct Output |
![]() |
500V Input to Output Isolation |
![]() |
Multiple ranges to select from |
![]() |
Replacement for other 4-20mA ClO2 |
Applications :
The CD4 series (chlorine dioxide sensors) feature amperometric measurement technology.Designed for disinfection applications in water treatment, for use with chlorine dioxide, chlorine generators, pools, etc., these sensors are available in several ranges for detecting ppm level of chlorine dioxide or free chlorine to better help our customers. Choose the CD402 for 0-2ppm and CD410 for 0-10ppm of chlorine dioxide.
Sensors output a 4-20mA signal. Membrane cap and fill solution are easily replaceable to maximize sensor life
Sensors can be used in new installations with Omicron’s flow cell or installed as replacement for other
4-20mA output ClO2 (Consult Omicron for compatibility).
An optional flow meter is available to help provide consistent flow for added system stability
Additional information
Measuring Range | : 0-2 or 0-10 ppm ClO2 |
---|---|
pH Range | : 4-11 |
Body Material | : PVC |
Temperature Range | : 0 – 45 Degrees C |
Maximum Pressure | : 14.7 psig (1 Bar) |
Temp Comp | : Integrated |
Cable Length | : 10 feet 2 conductors, tinned leads |
Process Connection | : flow cell 1/4 inch FNPT threads |
Output | : 4-20mA |
Flow Range | : Min 0.2gpm (45 l/hr), Max 0.6gpm (135 l/hr) |
Supply Voltage | : 12-24V DC, 250mA minimum |
Cross Sensitivity | : Ozone, Free chlorine, monochloramine |
Chemical Compatibility | : up to 50% ethanol/ water, up to 50% glycerol/water |
