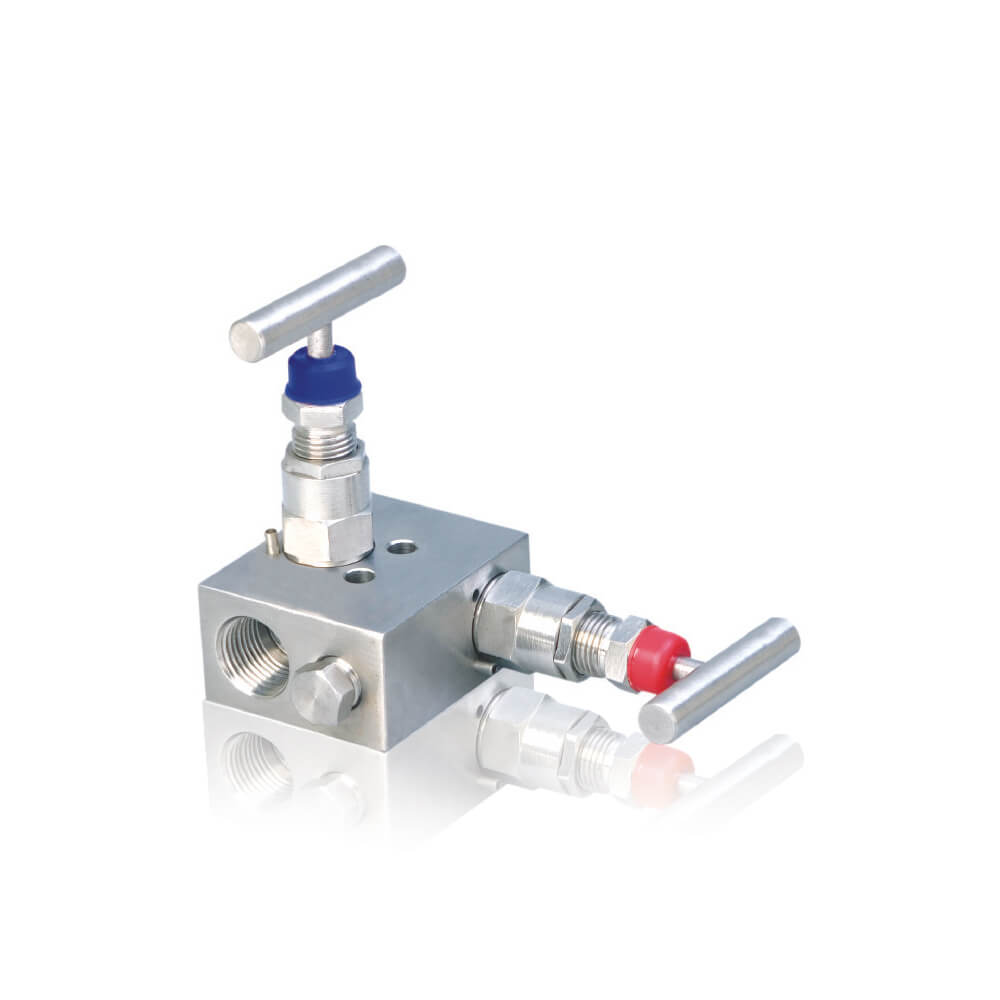

2VM Manifold Valve

Model : 2VM
MOC : AISI SS316 / AISI SS304 / Exotic Material
Temp Lmiit : 250°C
Pressure Limit : 10000 psi
No. of Valves : 2
Design : R Type
Download

Description

Description :

Needle Valves with compression ends designed for use on general applications requiring complete isolation and throttling of media. offered designed twin ferrules and nuts are available in imperial and metric sizes. Specially designed conical metal tip press fitted ensures perfect alignment for positive bubble tight shut-off. Available with tube end connections in sizes from 6 mm to 12 mm and 1/4″ to 1/2″ tube or one
end screwed to male or female

Applications :
Instrument isolation
Media throttling
Liquid and vapour service



Additional information

Pressure

: 400 bar

Max Temp.

: 240°C

Material

: Stainless Steel

Stem

: (CT) chrome plated Conical tip press fitted hard

Gland Packing

: PTFE Grafoil to be used for temperature above 240°C till 550°C)

Stem Packing Area

: Burnished mirror finish for Smooth valve
operation

Safety

: Back seating for preventing stem blowout.
