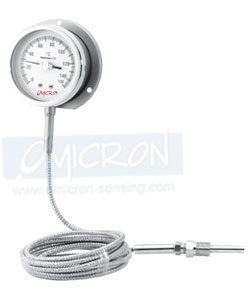

TGMS : Mercury Filled Temperature Gauge
Type : Mercury Filled
Dial Size : 2.5" - 10"
Range : -30 to 650°C
Wetted Parts : SS316
Case : SS304
Capillary : Upto 15 mtr

Special Features :

Stainless steel case & measuring system
Bottom / Back / Every Angle Entry
Dry or Liquid Filled
Mercury Filled Expansion System

Applications :

Food & beverage, pharmaceutical, cryogenics, chemical & petrochemical industries, conventional & nuclear power Plants, pumps, hydro-cleaning machines, presses, engine Compressors, turbines, diesel engines & refrigerating plants.

Specifications :

Standard Version: 100mm, 150mm
Accuracy : Class 1 as per EN 13190
Ambient temperature : - 25 oC to + 65 oC
Process pressure : 15 kg/cm2  (Without Thermowell)
Over Range Limit : 130% of the Scale Value or 650 oC, whichever is minimum
Stem Diameter : 6mm / 8mm / 10mm / 12mm
Case : AISI 304 SS
Ring : AISI 304 SS, Bayonet Lock
Stem : AISI 316 SS
Connecion : AISI 316 SS
Movement : AISI 304 SS
Joints : Tig Argon Arc Welding
Protection : IP 65
Dial : Aluminium, black graduation on white background
Pointer : Aluminium, black coloured fixed pointer
Window : Sheet Glass
Gasket : Neoprene
