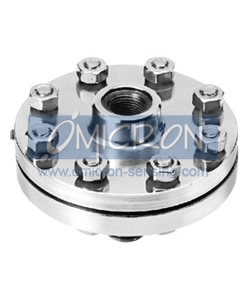

SDC : Direct Coupled Diaphragm Seal
Type : Direct Coupled
Range : -1 to 700 bar
Connection : Threaded
Fill Fluid : Silicon / Fluorolube
Wetted Parts : SS316L / Exotic
Non Wetted Parts : SS316 / SS304

Special Features :

Compact Design
One Piece Stainless Steel Construction
One Piece Stainless Steel Construction
Low Cost Solution
Various Filling Fluids available

Applications :

Diaphragm Seals are provided in the instruments like Pressure Gauges, Pressure Switches and Pressure Transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature, to avoid cloggin and solidifcation.

Specifications :

Standard Version : Suitable for upto 63mm Nominal Size
Pressure Range : -1 kg/cm2  to 21 kg/cm2
Process Temperature : - 40 oC to + 200 oC
Instrument Connection : 1/4” BSP (F)
Process Connection : 1/4” BSP (M)
Diaphragm : AISI 304 SS
Top Chamber : AISI 304 SS, Bayonet Type
Bottom Chamber : AISI 316L SS
Instrument Connection : AISI 316L SS
Process Connection : AISI 304 SS
Filling Fluid : Silicon Oil - DC 200
