Type |
: Direct Coupled |
|
Accuracy |
: ±5.0% |
|
Range |
: 10 Bar ~ 1000 Bar |
|
Wetted Parts |
: AISI 316 SS |
|
 |
Special Features : |
|
Low Cost OEM |
|
Wide Temperature Range |
|
Crevice Free Stainless Steel Construction |
|
Arch Burst Design |
|
Compact Version |
|
Leak Proof Seal |
|
Instant Response in milliseconds |
|
|
Applications : |

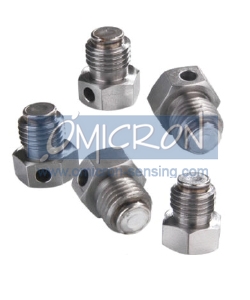

| P1020 Rupture Discs with Compact Design are used as a pressure relief device for safety applications and excess pressure relief in Petrochemical,
Aerospace, Aviation, Defense, Medical, Railroad, Nuclear, Chemical,
Pharmaceutical, Food processing and oil field applications. They can be used as single protection devices or as a backup device for a conventional safety valve; Rupture discs are very often used in combination with safety relief valves, isolating the valves from the process, thereby saving on valve maintenance and creating a leak-tight pressure relief solution. |
|
Specifications : |
|
Pressure Range |
: 10 Bar ~ 1000 Bar |
|
Accuracy |
: ±5.0% |
|
Operating Temp. |
: - 40 C to 650 C |
|
Process Connections |
: 1/4” BSP; 1/4” NPT; 1/2” BSP; 1/2” NPT |
|
Disc Diameter |
: 5mm ~ 50mm |
|
|
|
Wetted Parts |
: AISI 316 SS |
|
Diaphragm |
: AISI 316 SS |
|
Bolt |
: AISI 316 SS |
|
Welding |
: Laser Welding |
|
Media Compatibility |
: All Materials compatible with AISI 316 SS |
|
|
|
|
