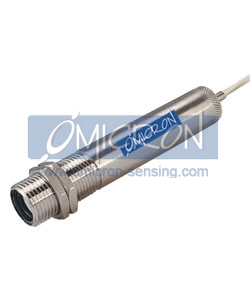

OS136 : Infrared Temperature Transmitter
Type : Infrared Transmitter
Model : OS136
Temperature Range : -18 to 540°C
Accuracy : ±1% of Reading
Output : 4 - 20mA, 0 to 5 V
Power Supply : 12 - 24V DC


Special Features :

Temperature Ranges Available
  OS136-1: -18 to 202°C (0 to 400°F)
  OS136-2: 149 to 538°C (300 to 1000°F)
Sensor and Transmitter Combined
Packaged into a 19 mm (3⁄4") OD by 89 mm (3.5") Long Stainless Steel Housing
Optical Field of View: 6 to 1
Fixed Emissivity of 0.95
NEMA 4 (IP66) Rated Housing
  Makes Fast and Accurate Measurements
4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc, Type K Thermocouple,10 mV/ Degree Analog Outputs Available

Applications :

OMICRON miniature, low-cost, high-performance infrared sensor/ transmitter
model OS136 features a 19 mm (3⁄4") OD by 89 mm (3.5") long stainless steel
NEMA 4 (IP66) housing. This mini transmitter is ideal for applications that require
measuring temperature in hard- to-reach, confined, or harsh environments. The OS136 comes with a 1.8 m (6') shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, data loggers, recorders, computer boards, and PLCs. The fixed emissivity of 0.95 allows for quick and easy measurement requiring no adjustment during installation and use.

Specifications :

Temperature Range : OS136-1: -18 to 202°C (0 to 400°F)
    : OS136-2: 149 to 538°C (300 to 1000°F)
Accuracy @ 22°C : OS136-1: 3% of rdg or 4.4°C (8°F), whichever is greater
    : OS136-2: 3% of rdg or 5.5°C (10°F), whichever is greater from 185 to 510°C (365 to 950°F)
  Repeatability : 1% of rdg
Operating : Optical Field of View: 6 to 1 (distance to spot size)
Spectral Response : 5 to 14 microns
Response Time : 150 msec, 0 to 63% of final value
Emissivity : Fixed at 0.95
Analog Output : MA: 4 to 20 mA
    : V1: 0 to 5 Vdc
    : V2: 0 to 10 Vdc
Output Load Requirements : K: Type K thermocouple,compensated MVC: 10 mV/ C
    : MVF: 10 mV/°F
    : Min Load (0 to 5 Vdc): 1 k
    : Min Load (0 to 10 Vdc): 2 k"
    : Min Load (10 mV/Deg): 10 k"
    : Min Load (K T/C): 100 k"
