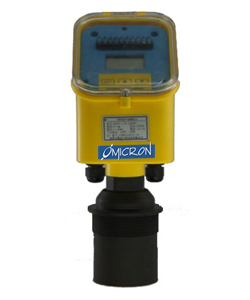

ML8Y : Ultrasonic Level Switch
Type : Ultrasonic
MOC : Non-Contact
Range : Upto 40m
Contacts : 4 - 20 mA; 2 SPDT
Enclosure : IP67
Max Pressure : Upto 10 bar
Features & Benefits :
Provides two-wire 4-20 mA analog output
Compact sensor with 2” deadband and beam width
Replaces capacitive rods, bubbler systems and sight gages

Description :

This general purpose, ultrasonic sensor provides non-contact level measurement up to 1500” (40 m) with a 4-20 mA output. This device directly replaces contact measurement sensors connected to a PLC analog input card for easy design conversion or field retrofit. The two-wire, 4-20 mA output is ideal for longer signal distances up to 1000’. The sensor is well suited for a wide range of corrosive, sticky or dirty type media. ML8Y Tx is broadly selected for small atmospheric tank, IBC, drum, skid or process vessel and sump applications.

Specifications :

Range : 1500” (40 m)
Accuracy : 0.5%
Resolution : 0.01m
Beam Width : 4” (10 cm)
Deadband : 4” (10 cm)
Supply Voltage   24 VDC (loop)
Loop Resistance : 400Ω Max @ 24 VDC
Consumption : 0.5W
Signal Output : 4-20mA, Two-Wire,
Contact Type : 2 SPDT Optional
Loop Fail-Safety : 4 mA, 20 mA, 21 mA, 22 mA or Hold Last
Configuration : 3 Buttons
Temp. Compensation : Automatic over range
Process Temperature : F: 20° to 140°      C: -7° to 60 °
Ambient Temperature : F: -31° to 140°     C: -35° to 60°
Max. Working Pressure : 15 PSI
Enclosure : Type 6P, Encapsulated, Corrosion Resistant
Enclosure Material : PC/ABS FR
Strain Relief Material : Santoprene
Transmitter Material : PVDF
Cable Length : 48” (Opt ional)
Cable Jacket Material : Polyurethane
Process Mount : 2” with Che ck Nut
Mounting Gasket : Viton®
Classification : General Purpose
Approvals : CE
Warranty : 12 Months
