M1200 : Melt Pressure Transmitter
Model : M1200
Type : Melt Pressure
Range : 0 to 2000 bar
Output : 4 - 20mA, 0 - 10V
Accuracy : ± 0.5% of F.S
Temperature Limits : -40 to 350ºC
Over Pressure : 2X

Description :

M1200 Series Economic melt Pressure Transducer designed for economic applications. The model M1200 and MT1200 is with thermocouple, which can measure the pressure and temperature at one point. This series can be used together with the PVI Series Intelligent Digital Pressure Instrument of Omicron or other brand instrumentation. Zero & full span can be adjustable, with amplify signal can be connected with PLC. With the advantage of high precision and reliable pressure measuring and good quality, internal 80% calibration and etc.

Applications :

It can be widely used in various plastic extrusion line for pressure measuring and control, such as chemical fibre manufacturing equipment, plastic rubber machine, polyester equipment and petrochemical industries.

Specifications :

Pressure Range : 0-3.5MPa--0-150MPa
  (0-500psi---0-30000psi)
Over Pressure : 1.5 X FSO
Combined Error : ± 1.0% FSO, ± 1.5% FSO
  (Including Linearity, Repeatability & Hysteresis)
Output : 3.33 mV/V, 2mV/V; 4-20mA, 0-10V, 0-5V
Input Voltage : 10VDC; 24VDC
Repeatability   +/- 0.2% FSO
Bridge Resistance : Input: 345 Ohms minimum
  Output: 350 Ohms +/- 10%
Internal Shunt Calibration (R-Cal) : 80% FSO +/- 1%
Insulation Resistance : 200 megohms @ 100 Vdc
Max Diaphragm Temperature : 400oC
Mounting Torque : 500 inch/lbs, maximum
Standard Wetted Parts : Diaphragm coated 15-5 PH SST
Electrical connector : 5PIN connector
Process connector : 1/2" - 20 UNF, M18 x 1.5

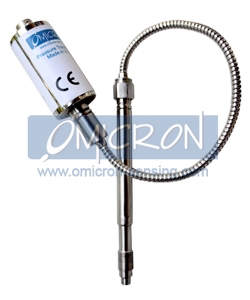

Melt Pressure Transmitter,pressure sensors in india
