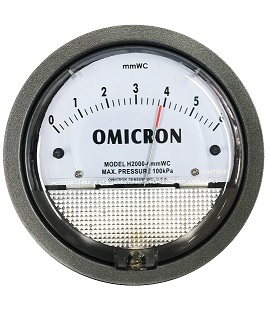

H2000 : Differential Pressure Gauge

Special Features :

Mounts in Industry Standard Holes
Accuracy 2%
Die Cast Aluminium Housing
Indicates Negative, Positive or Differential Pressure
Frictionless Movement
Resists Shocks, Vibration and Over Pressure
OEM Branding Options Available
Compare Omicron H2000 vs Dwyer® Magnehelic® 2000
Accessories For Differential Pressure Gauges

Applications :

H2000 Low Cost Differential Pressure Gauge Is The Industry Standard To Measure Fan And Blower Pressures, Filter Resistance, Air Velocity, Furnace Draft, Pressure Drop Across Orifice Plates, Filter Status, Room Pressure, Duct Static Pressure, Paint Booths, Dust Collectors And Cabinet Purging Along With Many Others.

Specifications :

Pressure Ranges : Various Ranges Upto 80 KPa
Pressure Limits : -20”Hg to 15 PSI (Available upto 25 PSI for Higher Ranges)
Media Compatability : Air and Non-Combustible, Compatible Gases
Accuracy : ±2% of F.S (For Ranges over 0.5“wc)
  ±3% of F.S (For Ranges > 0.25“wc, and ≤ 0.5” )
  ±4% of F.S (For Ranges ≤ 0.25“wc)
Temperature Ranges : -20 F to 140 F (-7 C to 60 C)
Mounting Orientation : Diaphragm in Vertical Position
Size : 4” (101.6mm) diameter dial face
Housing Material : Die Cast Aluminium Case with Acrylic Cover
Process Connection : 1/8” NPT (F)
Weight : 520 grams
Accessories : Two 1/8” NPT Barbed Fittings With Plugs And Three Mounting   Screws
pressure gauges, digital pressure gauge
Download Data Sheet
