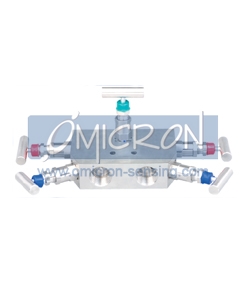

5VM : Manifold Valve
Model : 5 Valve
MOC : AISI SS316 / AISI SS304 / Exotic Material
Temp Lmiit : 250°C
Pressure Limit : 6000 psi
No. of Valves : 5
Design : R / H / T Type

Applications :

With threaded vertical point inlets and outlets.The isolating and venting bonnets are positioned on the left side nad the equalizing bonnet is positioned on the front side.Designed for remote mounting

Specifications :

Product : 5VM
Process side I : 1/2” NPT female
Instrument side : 1/2” NPT female
Vent/Test : 1/4” NPT female
